Cold Press
Product Model:CP-500T
The cold press is a necessary equipment in plywood machine. The machine is used to pre-press the glued veneer and to make it flat and stick together. The machine is suitable for pre-press process of making plywood, blockboard and decorative board.
Yo Sheng's cold press machine specializes in woodworking process and is fit for making cold pressed cutter blade, grinding wheel and resin bond wheel which can be finished if heating plates are used. In additional to, the cold press can be applicable in density boards, shaving board, veneer boards, solid wood boards, wood glue and woodworking industry.
Specification:
- Machine Size: 500 tons
- Made In Taiwan, Republic Of China
- Key Features: Pre Press & Cold Press
- The working table is made of cast iron to give a long service life and low maintenance cost.
MODEL | CP-500T |
Size of platen | 1350*2700mm(4'*8') |
Total pressrue | 500 Tons |
Unit pressure | 16.8kg/cm2 |
Main rans | Ø375mm*2 Sets |
Opening ran | Ø80mm*2 Sets |
Opening distance | 300-1200mm |
Pressing stroke(Max) | 900mm |
Platen up-down speed | 550mm/min |
Pressing speed | 150mm/min |
Motor for pump | 11kw*6p |
Motor for conveyor | 0.75kw*4p |

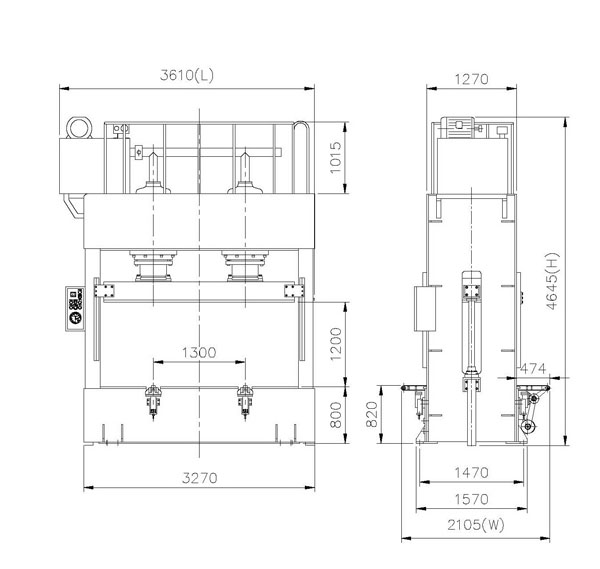

Machine Size | 3610L*2105W*4645H |
