Saw for Cross Cut
Product Model:
- Teeth Shape: crosscut type.

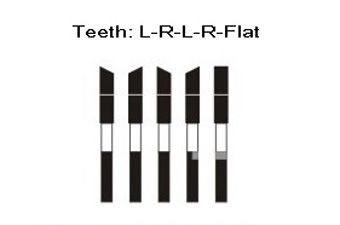

- Direction: Left → Right → Left → Right → Flat, 5 teeth per set.
- Application: cross cutting for log, routing panel, medium & high density board. Plywood and double surfaces laminated board.
- Applicable Machines: (Automatic) double end cutting machine, radial arm saw and jumping saw.
Saw For Cross cut (Standard)
The customization is available.
| O.D | Bore | Thickness (m/m) |
Teeth |
| 8"(205) | Ø25.4/Ø30 | 2~3 | 30T~80T |
| 10"(205) | Ø25.4/Ø30 | 3 | 30T~120T |
| 12"(305) | Ø25.4/Ø30 | 3 | 36T~80T |
| 12" | Ø25.4/Ø30 | 3 | 100T |
| 12" | Ø25.4/Ø30 | 3 | 120T |
| 14"(355) | Ø25.4/Ø30 | 3~3.2 | 100T |
| 14" | Ø25.4/Ø30 | 3~3.2 | 120T |
| 16"(405) | Ø25.4/Ø30 | 3.2 | 120T |
| 18"(455) | Ø25.4/Ø30 | 3.4 | 120T |
| 20"(505) | Ø25.4/Ø30 | 3.4 | 100T |
| 20" | Ø25.4/Ø30 | 3.4 | 120T |
| 24" | Ø25.4/Ø30 | 4 | 60T |
| 24"(610) | Ø25.4/Ø30 | 4 | 80T |
| 24"(610) | Ø25.4/Ø30 | 4 | 120T |
